Dynamic Simulation Report
The dynamic report is a summary of the dynamic simulation. It allows a general overview of the model and helps identify possible issues in the system. All data can be copied to the clipboard using File>Copy to clipboard. Values can be sorted to highlight a specific issue. Opens a graph of the selected element. Centers the screen on the selected element.
- General – Gives the total flow and power through the model

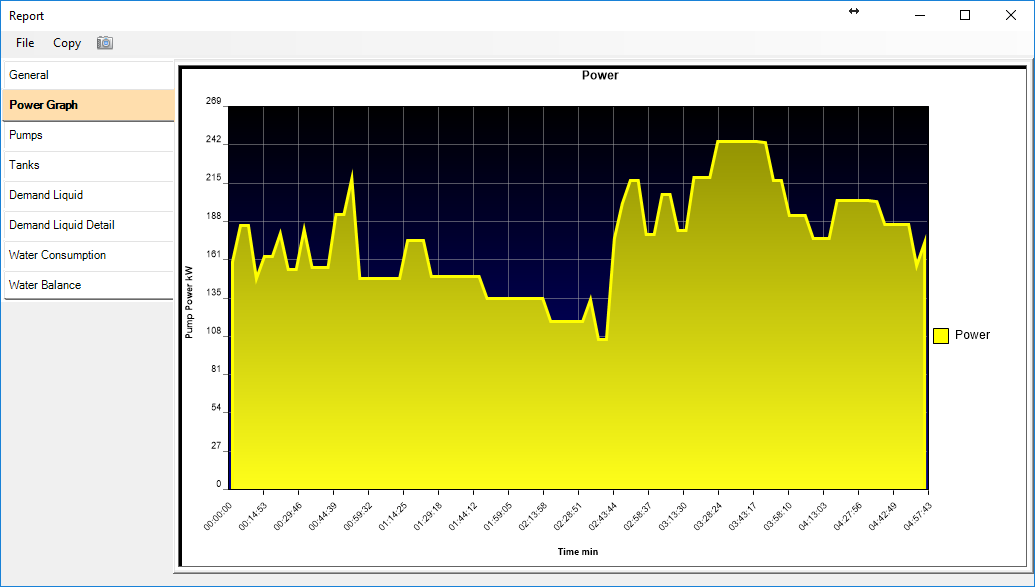

- Power – Graph of the power consumed over time
- Pumps/Compressors – Lists the pumps in the system, displaying the number of times each pump switched on/off and the percentage of the time the pump was on.
- Tank/Receiver – List the containers in the model, displaying the number of times each one empties and the percentage of the time where the container is filling up.
- Demand – List all different types of demand devices and display the amount of water consumed for each.
- Demand Detail – List all demand points with their minimum and maximum pressure.
- Water Consumption – Plot the volume of water used over time.
- Water Balance – Plot the amount of water lost or gained by the model.
